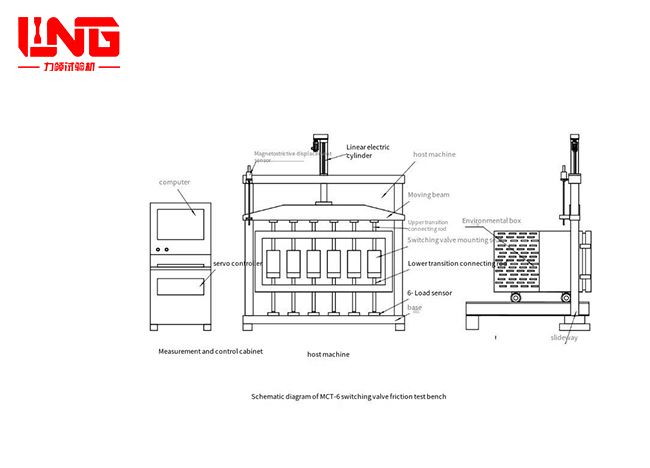

MCT-6(6 stations) Microcomputer-controlled friction test bench for switching valve
Microcomputer-controlled friction test bench for changeover valve is a kind of testing equipment specially developed to test the friction of changeover valve according to the requirements of changeover valve.
Introduction
The friction test bench of microcomputer-controlled switching valve is customized according to the actual experimental requirements to meet the test needs. The measurement and control system has multiple measurement channels, which can be closed-loop controlled for any channel, and the control channel can be converted without impact during the test. The test bench has the advantages of convenient operation, strong fault tolerance, accurate measurement, complete protection function and high control accuracy.
The loading frame of the main engine of this machine has high bearing strength, high rigidity of the main engine, and the load can meet the bearing capacity of more than 2 tons. With the structure of electric cylinder on top, this machine can complete various forms of performance test, and can carry out various control methods such as test speed and displacement during the test.
Parameters
|
Parameter Category |
Parameter |
Specification / Requirement |
|
Testing Capacity |
Tension/Compression Force Range |
0 - 10 kN (Satisfies 1250 N × 6) |
|
|
Application |
100% Inspection on Production Line |
|
Drive & Motion System |
Drive System |
Servo Motor with Ball Screw Drive |
|
|
Actuation Mechanism |
Servo Cylinder (Applies force upwards & downwards) |
|
|
Maximum Test Speed |
100 mm/s |
|
|
Maximum Test Stroke |
100 mm |
|
|
Servo Cylinder Stroke |
150 mm |
|
Platform |
Work Platform Dimensions |
1100 × 120 mm (with center hole) |
|
Measurement Accuracy |
Force Measurement Accuracy |
0.1% of reading |
|
|
Displacement Measurement Accuracy |
0.002 mm |
|
Control & Safety |
System Halt Condition |
Stops when preset force or displacement limit is exceeded |
|
|
Control Buttons |
Physical buttons for Start, Stop, and Emergency Stop |
|
|
Operating System |
Windows 10 |
|
Software & Reporting |
Data Output |
Force-Displacement Curve |
|
|
Report Format |
Test report generated in Excel, using predefined template |
|
|
Certificate Printing |
Prints parameters on A4 sheet according to Commissioning Report/Certificate template |
|
Environmental Chamber |
Temperature Range |
-70°C to +150°C |
|
|
Temperature Control Accuracy |
±1°C |
