Jinan liling Testing Machine 200 ton horizontal tensile testing machine for steel wire rope: years of technical accumulation, creating a powerful tool for industry testing

The 200 ton steel wire rope horizontal tensile testing machine of Jinan Liling Testing Machine Co., Ltd., with years of technical accumulation, continues to play an important role in the field of steel wire rope and iron chain testing, becoming a trusted testing tool in the industry.
This equipment has a maximum tensile force of 200 tons and is designed specifically for testing the fracture performance of high-strength steel wire ropes and iron chains. It can accurately simulate the stress state under various working conditions, ensuring product quality. Its oil cylinder has a stroke of 2 meters and a stretching space of 10 meters, which can fully meet the stretching test requirements of different length specifications of steel wire ropes and iron chains, and is widely applicable in various scenarios.

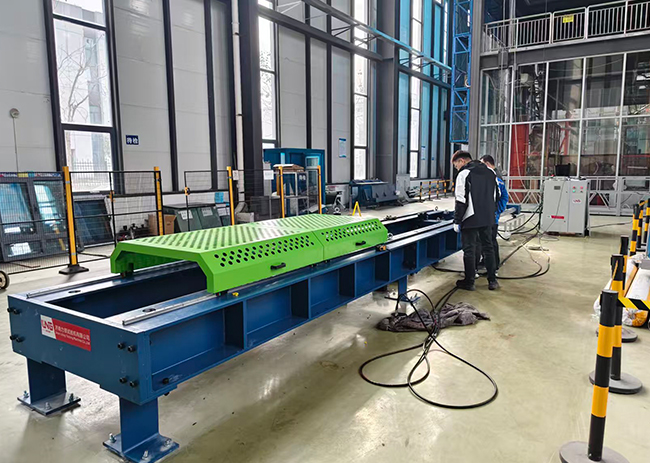

In terms of safety protection, a push-pull protective cover is adopted, which not only effectively ensures the safety of test personnel, but also allows for flexible pushing and pulling according to operational needs, making sample installation and debugging more convenient, achieving a good balance between safety and operability.
Main technical indicators:
1. Maximum test force: 2000kN;
2. Force sensor: load sensor;
3. Measurement range of test force: 2% -100% FS, no grading throughout the entire process;
4. Relative error of test force indication: within ± 1% of the indication;
5. Experimental resolution: 1/500000 of the maximum experimental force (with constant resolution throughout the entire process);
6. Deformation measurement range: 1% -100% FS;
7. Relative error of deformation indication: within ± 1% of the indication;
8. Relative error of displacement indication: within ± 1% of the indication;
9. Displacement resolution: 0.01mm;
10. Loading speed: 0.1-30mm/min
11. Control range of constant stress, constant deformation, and constant displacement: 2% -100% FS;
12. Constant force, constant deformation, and constant displacement control accuracy: within ± 1%;
13. Effective stroke of oil cylinder: 2000mm;
14. Stretch space adjustment interval: 500mm
15. Equipment effective space: 10000mm
16. Center height of stretching space: 500mm
17. Control: Independently developed high-precision acquisition and control system, which can achieve closed-loop control of force, displacement, deformation, etc., silent and energy-saving servo pump oil source control system, energy-saving, noiseless, no heating, no cooling device required;
18. Power supply: three-phase five wire (including ground and N) 380V ± 10%, 7.5KW;
Jinan Liling Testing Machine Co., Ltd. has been deeply involved in the field of testing equipment for many years, always focusing on technological innovation and quality assurance. This 200 ton steel wire rope horizontal tensile testing machine is a reflection of the company's years of technological accumulation, and embodies its rich experience in the research and manufacturing of large-scale tensile testing equipment.
It provides accurate and efficient testing solutions for industries such as mining, construction, and shipping that rely on steel wire ropes and iron chains, helping enterprises strictly control product quality and ensure production safety. In the future, Jinan Liling Testing Machine Co., Ltd. will continue to rely on its technological advantages to provide more high-quality experimental equipment for the industry and promote the continuous improvement of the industry's testing level.
